SCADA DIAView VBS 实现 FTP 上传与下载

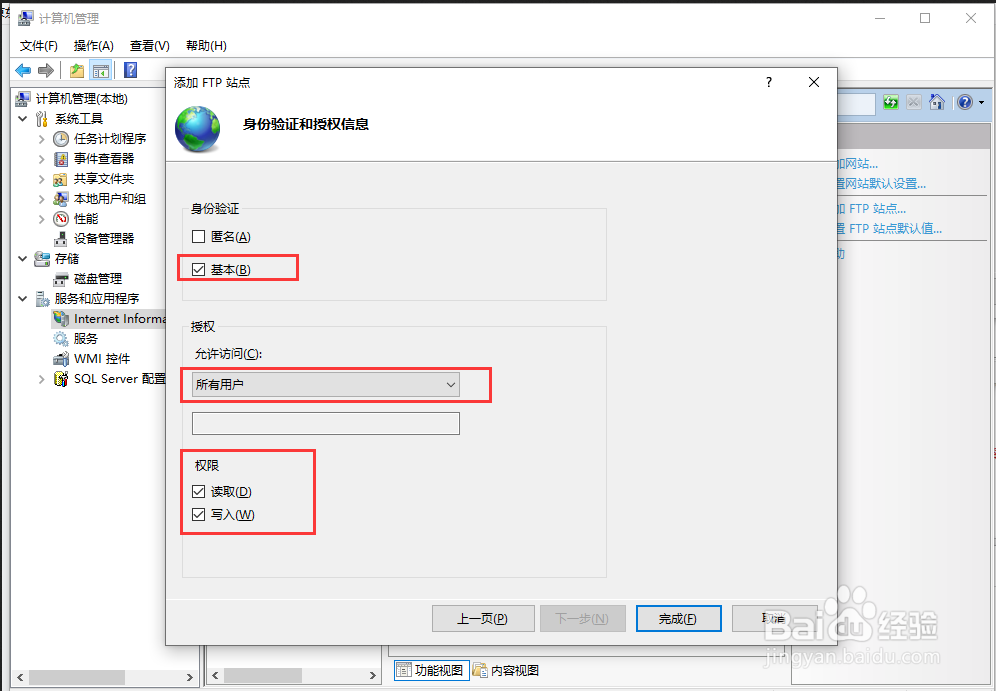

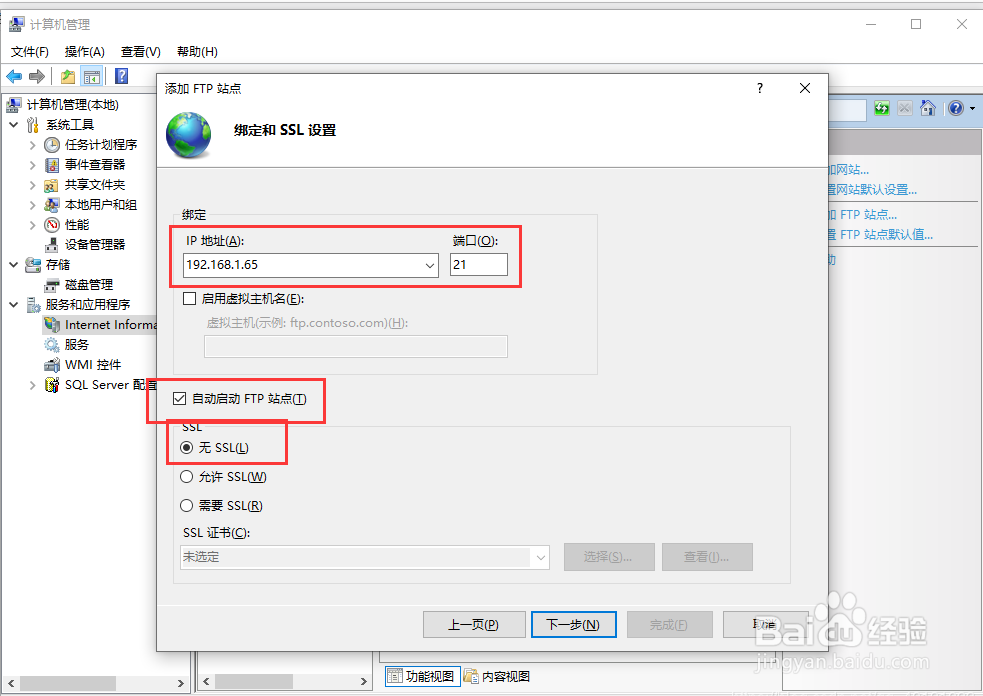

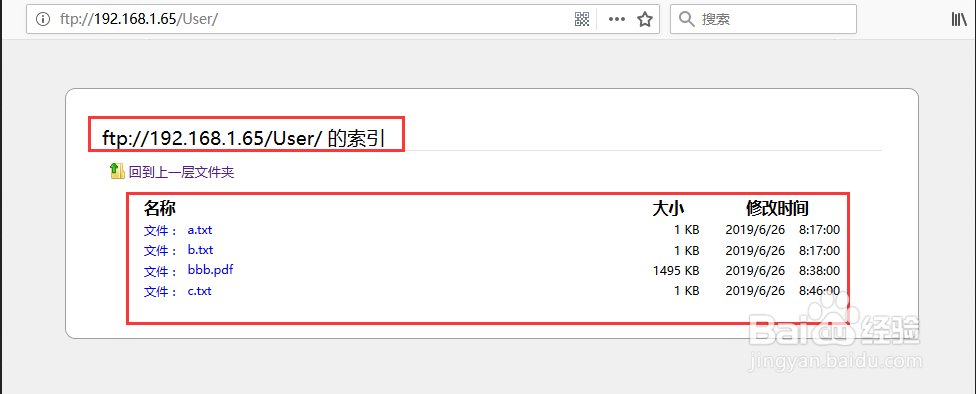

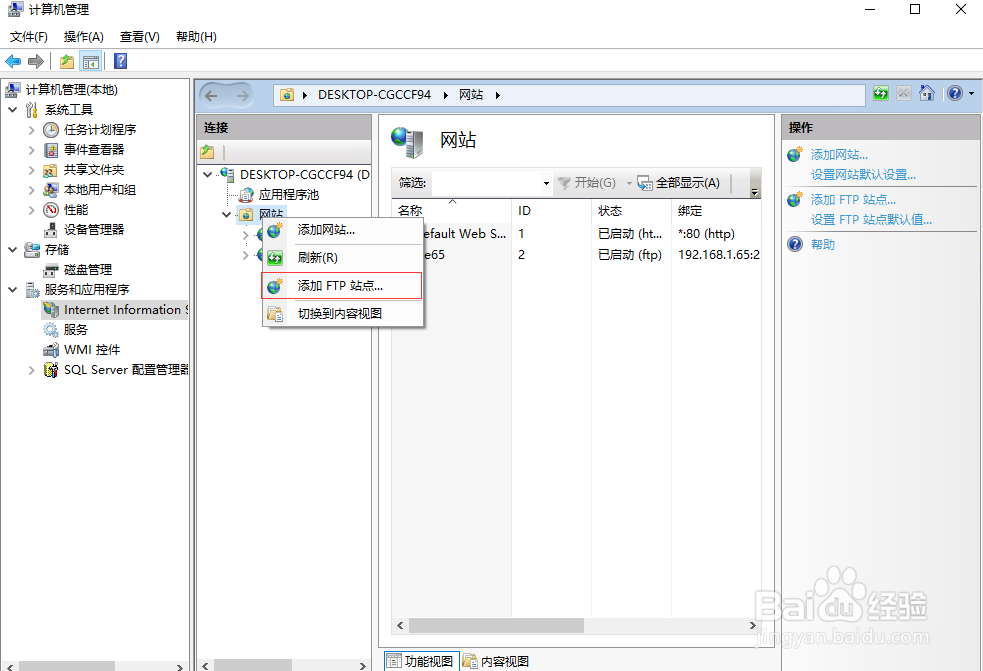

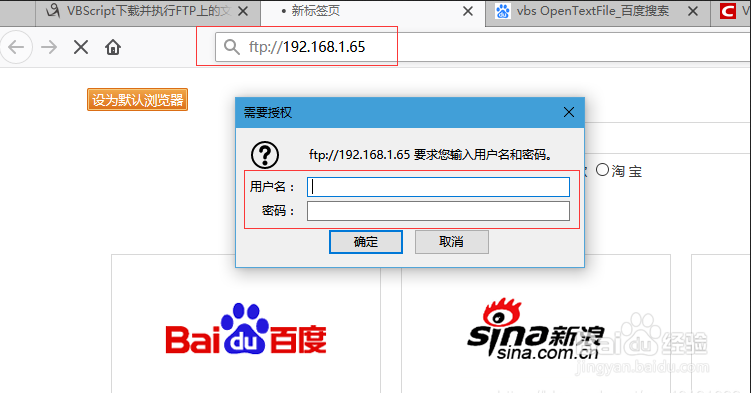

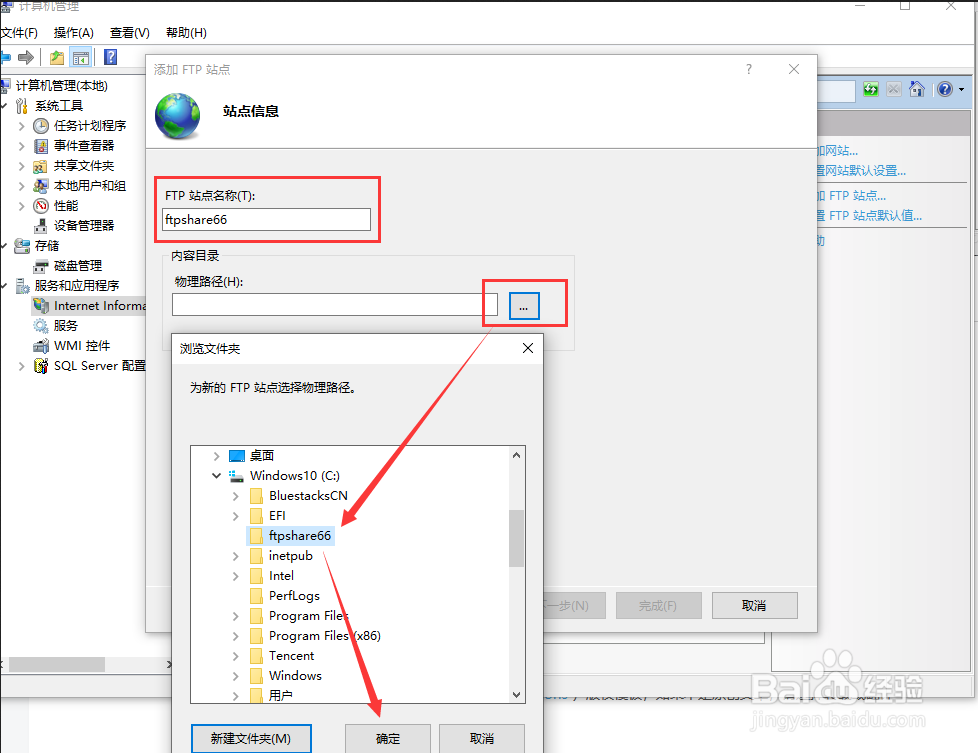

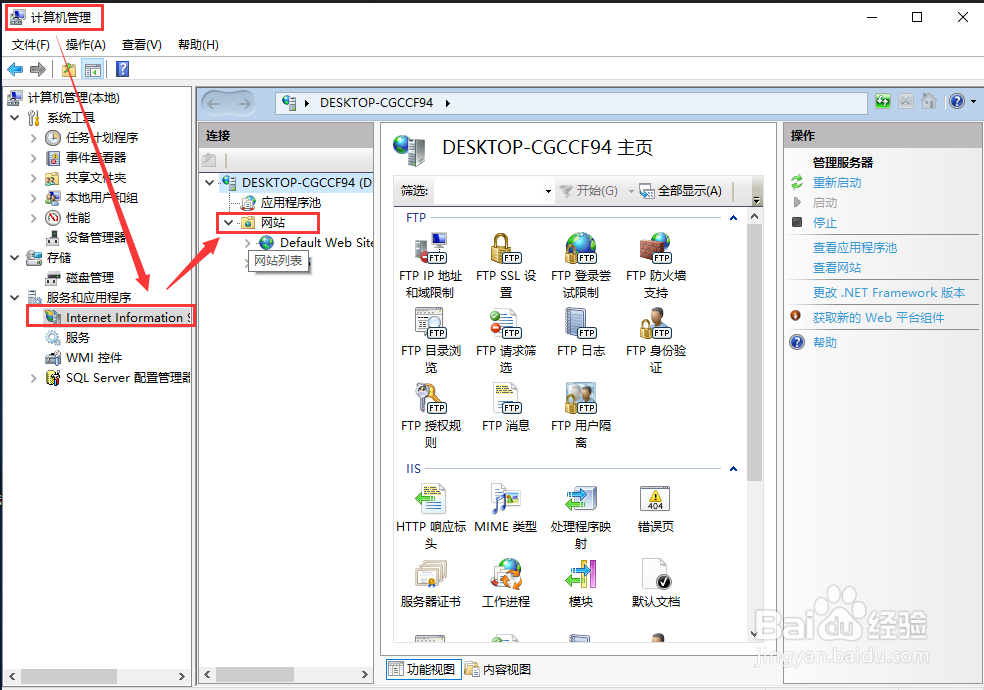

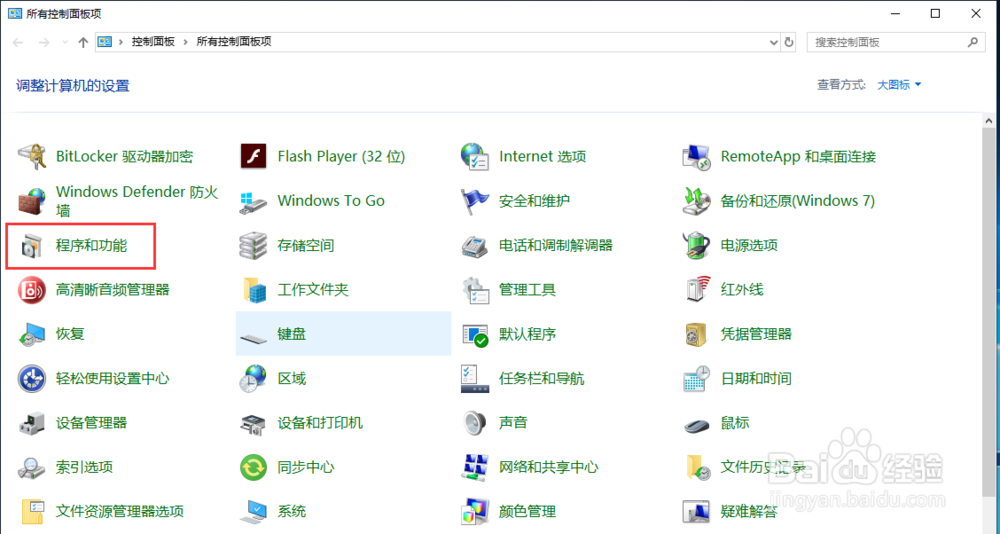

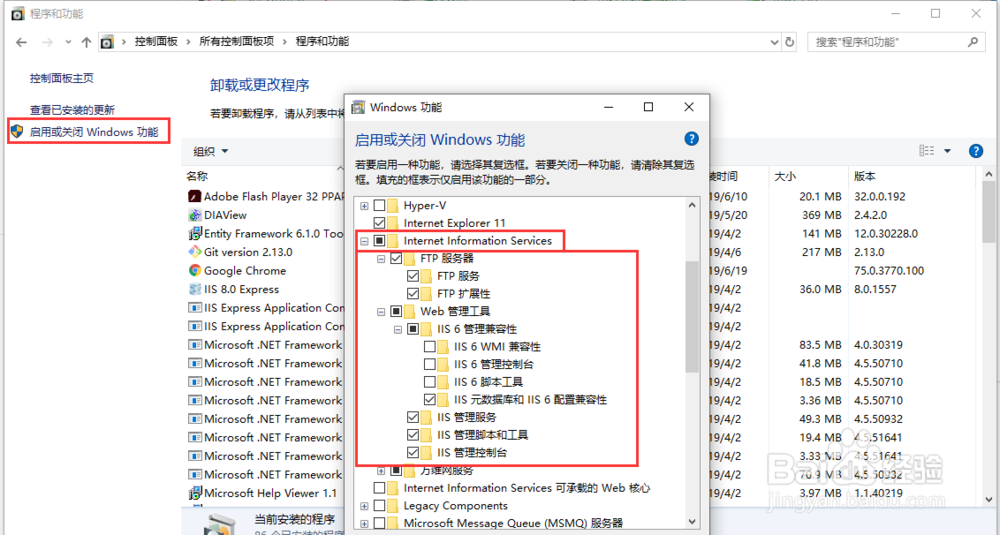

1、搭建局域网或本机的FTP 服务器 Win10a） 进入控制面板==>程序和功能【图1】b) 选择“启用或关闭Windows功能”==>对“Internet Information Services ” 下面对应的选项大打√==>点击“确定”安装成功==>重启电脑，然后进行 c 步骤。【图2】c) 我的电脑==>右击选择“管理”【图3】d) 网站==>右击添加“FTP站点”【图4】【图5】e) 点击下一步，进入 FTP 绑定IP 和端口号==》点击下一步，进入“身份证和授权信息”==》点击完成，进入 f 步骤【图6】【图7】f) 进行访问 ftp 服务地址 ，在浏览器网址中输入ftp所在服务器的地址如：“ftp://192.168.1.65”，进入登录界面。输入服务器的登录账号和密码即可。【图8】【图9】

2、创建组态DIAView工程来实现FTP的上传于下载

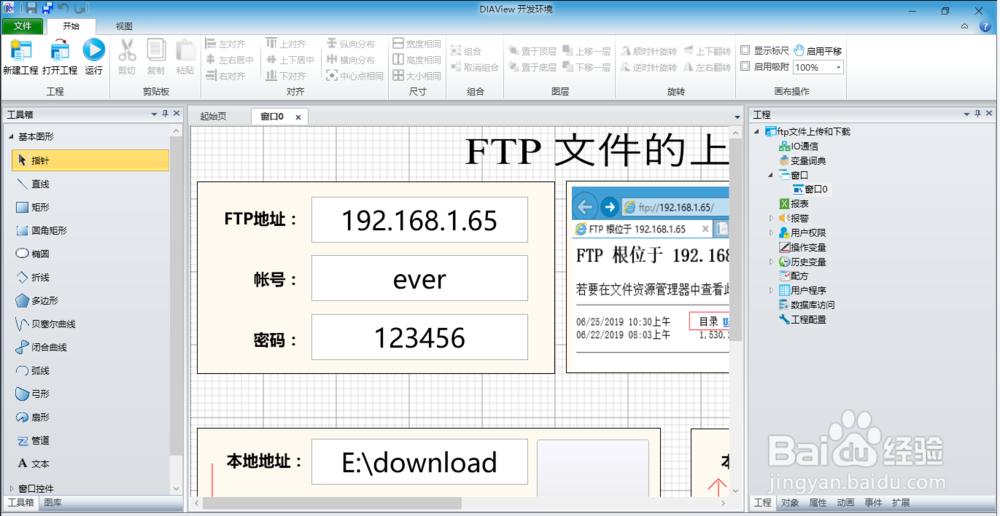

3、创建窗口如下：

4、按钮“上传”==>事件“左键按下”'FTP IP地址如：192.168.1.65 或 ftp.wwww.baidu.comF皈其拄攥TP_HOST=Trim(txtftpip.Text)'FTP 登录用户名FTP_USER=Trim(txtftpuser.Text)'FTP 登录用户密码FTP_PWD=Trim(txtftppwd.Text)'被上传的文件目录LOCAL_FOLDER =Trim(txtlocalpath.Text)'被上传的文件名称 多个用英文逗号隔开；*好表示全部文件strFileName =Trim(txtlocalfile.Text)strFTPFolder=Trim(txtftpfolder.Text)'strNewFileName=Sys.Year&Sys.Month&Sys.Day&Sys.Hour&Sys.Minute&Sys.Second&Sys.Millisecond'ApplicationSet objShell = Createobject("Shell.Application")'FileSystemobjectSet objFs = Createobject("Scripting.FileSystemobject")strFtpUrl = "ftp://" & FTP_USER & ":" & FTP_PWD & "@" & FTP_HOST & "/" & strFTPFolderSet obj2=objShell.NameSpace(LOCAL_FOLDER)Set objFolderItems = obj2.Items()For i = 0 To objFolderItems.Count - 1 Set ofitem = objFolderItems.Item(i) 'filePath=ofitem.path 'filePathArray=Split(filePath,".",-1,1) 'fileExt=filePathArray(UBound(filePathArray)) 'strFtpUrl=strFtpUrl&"/"&strNewFileName&"."&fileExt '表示上传全部 If strFileName="*" then Set FD = objShell.NameSpace(strFtpUrl) FD.CopyHere ofitem,4096 '如果存在并覆盖 End If If strFileName<>"*" And strFileName = ofitem.Name Then 'strFtpUrl=strFtpUrl&strNewFileName& Set FD = objShell.NameSpace(strFtpUrl) FD.CopyHere ofitem,4096 '如果存在并覆盖 End If NextMsgBox "上传成功！"

5、按钮“下载”==>事件“左键按下”'FTP IP地址如：192.168.1.65 或 ftp.wwww.baidu.comstr_server=Trim(txtftpip.Text)'FTP 登录用户名str_user=Trim(txtftpuser.Text)'FTP 登录用户密码str_password=Trim(txtftppwd.Text)'被上传的文件目录str_localDir =Trim(txtlocalpath0.Text)'被上传的文件名称 多个用英文逗号隔开；*好表示全部文件str_remoteFiles =Trim(txtlocalfile0.Text)'FTP下载目录str_remoteDir="\"&Trim(txtftpfolder0.Text)ftp_configFile = "listfiles.ini"Set ws = CreateObject("WScript.Shell")Set fs = CreateObject("Scripting.FileSystemObject")'处理路径中的空格str_remoteDir = Trim(str_remoteDir)If InStr(str_remoteDir," ")>0 Then If Left(str_remoteDir,1)<> """" And Right(str_remoteDir,1) <> """" Then str_remoteDir = """" &str_remoteDir& """" End IfEnd If'设置工作路径originalWorkingDirectory = ws.CurrentDirectoryws.CurrentDirectory = str_localDir'生成ftp命令ftpScript_str = ""ftpScript_str = ftpScript_str & "USER " & str_user & vbCrLf ftpScript_str = ftpScript_str & str_password & vbCrLf ftpScript_str = ftpScript_str & "cd " & str_remoteDir & vbCrLf ftpScript_str = ftpScript_str & "binary" & vbCrLf ftpScript_str = ftpScript_str & "prompt off" & vbCrLf remoteFiles_obj = Split(str_remoteFiles,",") For Each remoteFile_str In remoteFiles_obj 'remoteFile_str = Left(remoteFile_str,Len(remoteFile_str)-1) '去除回车符（为什么会有换行符？） If InStr(remoteFile_str, " ")>0 Then remoteFile_str = """" & remoteFile_str & """" End If ftpScript_str = ftpScript_str & "get " & remoteFile_str & vbCrLf NextftpScript_str = ftpScript_str & "bye" & vbCrLf & "quit" & vbCrLf & "quit" & vbCrLf '创建临时文件tempDir_str = ws.ExpandEnvironmentStrings("%TEMP%")scriptFilePath_str = tempDir_str& "\" &fs.GetTempNameftpResultPath_str = tempDir_str& "\" &fs.GetTempName'临时ftp脚本文件Set scriptFile_obj = fs.OpenTextFile(scriptFilePath_str,2,True)scriptFile_obj.Write(ftpScript_str)scriptFile_obj.Close'执行ftp脚本'logFileObject.WriteLine Time & " Downloading files from ftp..."ws.Run "%comspec% /c FTP -n -s:" &""""&scriptFilePath_str&""""& " " &str_server& " > " &ftpResultPath_str,0,True'WScript.Sleep 1000'临时ftp结果文件Set resultFile_obj = fs.OpenTextFile(ftpResultPath_str,1)successDownloadCount_int = 0failToDownloadCount_int = 0'WScript.Echo scriptFilePath_str & " " &ftpResultPath_str'WScript.Echo ftpScript_strDo Until resultFile_obj.AtEndOfStreamcurrLine_str = resultFile_obj.ReadLine'WScript.Echo currLine_str' If InStr(currLine_str,"get ")>0 And InStr(currLine_str,"forme")>0 Then If InStr(currLine_str,"get ")>0 Then currLine_str = Right(currLine_str,Len(currLine_str)-(InStr(currLine_str,"get ")+3)) nextLine_str = resultFile_obj.ReadLine nextLine_str = resultFile_obj.ReadLine nextLine_str = resultFile_obj.ReadLine If InStr(nextLine_str,"226 Transfer complete")>0 Then successDownloadCount_int = successDownloadCount_int + 1 'logFileObject.WriteLine Time & " Finish downloading file(" &currLine_str& ")" Else failToDownloadCount_int = failToDownloadCount_int + 1 'logFileObject.WriteLine Time & " Error：Fail to download file(" &currLine_str& ")" End IfEnd IfLoopresultFile_obj.Close'logFileObject.WriteLine Time & " Complete(" &successDownloadCount_int& ") Failed(" &failToDownloadCount_int& ")"'logFileObject.WriteBlankLines 1MsgBox "下载完成！"
